Battery Impedance
Inspection.

Battery Impedance Inspection is a crucial diagnostic method for evaluating the internal condition of batteries used in backup power systems, UPS units, telecom infrastructure, and data centers. As batteries degrade over time, their internal impedance rises—an early indicator of potential failure even when voltage levels appear normal. The Fluke BT521 Battery Analyzer is purpose-built to simplify and elevate this inspection process.

What Is Battery Impedance Inspection?

Battery impedance is the resistance a battery offers to current flow under load. Unlike a simple voltage test, impedance testing detects internal chemical and structural degradation, offering a predictive measure of health.

Key insights from impedance inspection include:

• Cell degradation

• Connection resistance issues

• Corroded terminals

• Imbalanced string performance

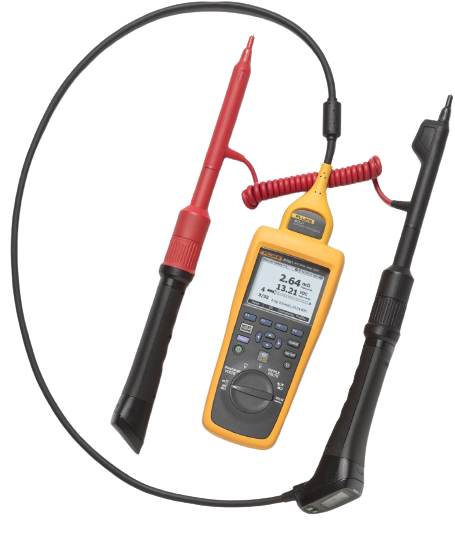

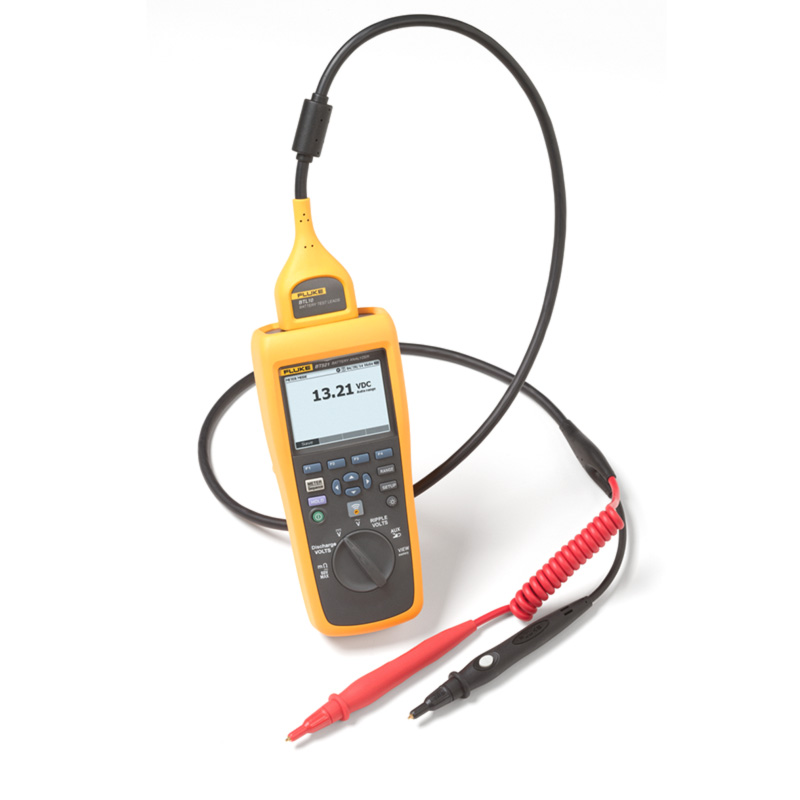

The Fluke BT521 is a professional-grade battery analyzer tailored for stationary battery systems. It enables fast, accurate impedance and voltage measurements while streamlining data collection and analysis.

Core Features:

• AC Impedance Testing (1 kHz) – Non-disruptive internal resistance measurement

• DC Voltage Measurement – For each cell and string

• Automated String Testing – Measures up to 999 batteries in a single session

• Temperature Measurement – Via included IR temperature probe

• Fluke Battery Management Software – For report generation and trend analysis

• Bluetooth Connectivity – Wireless communication with PCs and mobile devices

• BTA-KIT Remote Probe – Smart probe with trigger button and LCD feedback for faster testing

• Pass/Warning/Fail Indicators – Based on user-defined thresholds

The Fluke BT521 Battery Analyzer empowers maintenance teams to conduct fast, accurate, and comprehensive battery inspections with minimal disruption. Its advanced impedance diagnostics, intelligent probes, and seamless data handling make it an essential tool for any facility relying on uninterrupted power.
